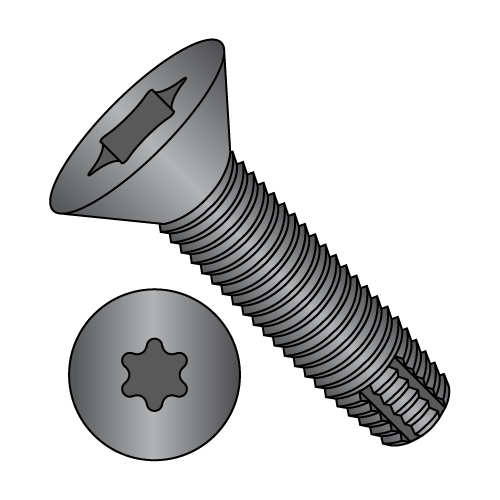

10-24X1 1/4 Flat - Floorboard - Six-Lobe - Type F - Thread Cutting Screws - Black Phosphate

Flat - Floorboard - Six-Lobe - Type F - Thread Cutting Screws - Black Phosphate

Manufactured to ASME B18.6.3 & SAE J933 specifications
Case Hardened to Rockwell C45 min
(Core Hardness: Rockwell C28-38)
Fully Threaded / Steel Black Phosphate & Oil

Has a special T27 Recess

Technical Specifications / 2D PDF Icon

Type F Floorboard Screws Head, Thread & Material Specs
Hole Size Data
Show filters

Diameter

Reset filter

Thread Pitch

Reset filter

Length

Reset filter
Product SKU:
Size:
Box Count:
Price Per Box:
1020FTFB
10-24X1 1/4
2,000
$269.08
-+
1408FTFB
1/4-20X1/2
5,000
$1,076.93
-+
1412FTFB
1/4-20X3/4
3,000
$401.33
-+
1416FTFB
1/4-20X1
3,000
$526.82
-+
1420FTFB
1/4-20X1 1/4
2,000
$203.43
-+
1424FTFB
1/4-20X1 1/2
1,000
$194.58
-+
1428FTFB
1/4-20X1 3/4
1,000
$190.15
-+
1432FTFB
1/4-20X2
1,000
$159.96
-+
1436FTFB
1/4-20X2 1/4
1,000
$228.46
-+
1440FTFBT27
1/4-20X2 1/2
750
$267.40
-+
1440FTFB
1/4-20X2 1/2
750
$189.29
-+
1444FTFB
1/4-20X2 3/4
750
$294.58
-+
1448FTFB
1/4-20X3
600
$225.25
-+
1456FTFB
1/4-20X3 1/2
500
$234.24
-+
1464FTFB
1/4-20X4
500
$307.59
-+
1480FTFB
1/4-20X5
300
$389.40
-+
1496FTFB
1/4-20X6
200
$304.38
-+
3112FTFB
5/16-18X3/4
2,000
$523.73
-+
3116FTFB
5/16-18X1
1,500
$537.49
-+
3120FTFB
5/16-18X1 1/4
1,250
$471.50
-+
3124FTFB
5/16-18X1 1/2
1,250
$381.78
-+
3128FTFB
5/16-18X1 3/4
1,000
$337.43
-+
3132FTFB
5/16-18X2
1,000
$212.73
-+
3136FTFB
5/16-18X2 1/4
600
$82.13
-+
3140FTFB
5/16-18X2 1/2
600
$136.61
-+
3148FTFB
5/16-18X3
500
$331.25
-+
3156FTFB
5/16-18X3 1/2
300
$280.67
-+
3164FTFB
5/16-18X4
300
$321.50
-+
3180FTFB
5/16-18X5
300
$775.18
-+
3196FTFB
5/16-18X6
200
$422.72
-+
3716FTFB
3/8-16X1
1,000
$556.28
-+
3720FTFB
3/8-16X1 1/4
1,000
$528.29
-+
3724FTFB
3/8-16X1 1/2
1,000
$591.70
-+
3732FTFB
3/8-16X2
400
$246.78
-+
3740FTFB
3/8-16X2 1/2
400
$309.37
-+
3748FTFB
3/8-16X3
300
$411.70
-+
5024FTFB
1/2-13X1 1/2
200
$561.55
-+
5032FTFB
1/2-13X2
150
$555.36
-+
Displaying 1 - 38 of 38 Results
