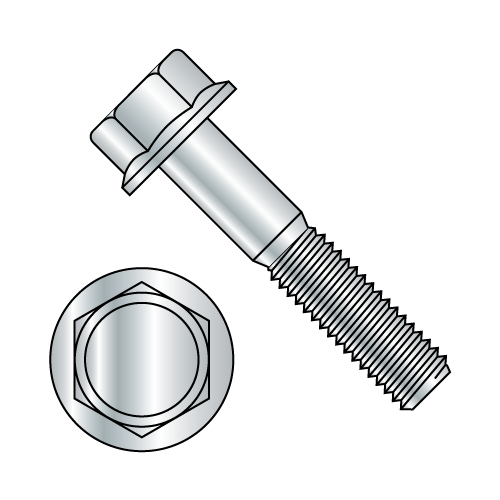

M10-1.5X16 DIN 6921 - Hex Flange Bolts - Class 8.8 - RoHS Zinc

DIN 6921 - Hex Flange Bolts - Class 8.8 - RoHS Zinc

METRIC

Class 8.8 Steel. Quenched & Tempered
Tensile Strength: 800 N/mm^2 (thru 16mm diam.)
800 N/mm^2 (over 16mm diam.)
Thread lengths per DIN 6921 specification / Zinc Plated to RoHS Standard

Technical Specifications / 2D PDF Icon

DIN 6921 Steel & Stainless
Show filters

Diameter

Reset filter

Thread Pitch

Reset filter

Length

Reset filter
Product SKU:
Size:
Box Count:
Price Per Box:
M610BF8
M6-1.0X10
1,000
$144.36
-+
M612BF8
M6-1.0X12
1,000
$176.28
-+
M616BF8
M6-1.0X16
1,000
$255.15
-+
M620BF8
M6-1.0X20
1,000
$153.01
-+
M625BF8
M6-1.0X25
1,000
$185.50
-+
M630BF8
M6-1.0X30
1,000
$172.19
-+
M635BF8
M6-1.0X35
800
$210.24
-+
M640BF8
M6-1.0X40
800
$315.31
-+
M650BF8
M6-1.0X50
800
$147.98
-+
M660BF8
M6-1.0X60
700
$222.60
-+
M812BF8
M8-1.25X12
800
$237.70
-+
M816BF8
M8-1.25X16
800
$263.49
-+
M820BF8
M8-1.25X20
800
$301.60
-+
M825BF8
M8-1.25X25
800
$196.57
-+
M830BF8
M8-1.25X30
700
$172.21
-+
M835BF8
M8-1.25X35
600
$281.09
-+
M840BF8
M8-1.25X40
500
$210.29
-+
M845BF8
M8-1.25X45
500
$221.23
-+
M850BF8
M8-1.25X50
400
$173.39
-+
M860BF8
M8-1.25X60
400
$263.44
-+
M870BF8
M8-1.25X70
400
$153.31
-+
M1016BF8
M10-1.5X16
500
$269.38
-+
M1020BF8
M10-1.5X20
500
$257.86
-+
M1025BF8
M10-1.5X25
400
$145.46
-+
M1030BF8
M10-1.5X30
400
$461.32
-+
M1035BF8
M10-1.5X35
400
$221.68
-+
M1040BF8
M10-1.5X40
300
$191.93
-+
M1050BF8
M10-1.5X50
300
$183.64
-+
M1060BF8
M10-1.5X60
200
$160.85
-+
M1070BF8
M10-1.5X70
200
$249.23
-+
M1080BF8
M10-1.5X80
200
$166.72
-+
M1220BF8
M12-1.75X20
300
$176.61
-+
M1225BF8
M12-1.75X25
300
$225.73
-+
M1230BF8
M12-1.75X30
300
$273.25
-+
M1235BF8
M12-1.75X35
300
$235.19
-+
M1240BF8
M12-1.75X40
200
$137.23
-+
M1250BF8
M12-1.75X50
200
$145.01
-+
M1260BF8
M12-1.75X60
100
$76.32
-+
M1270BF8
M12-1.75X70
100
$80.33
-+
M1280BF8
M12-1.75X80
100
$163.26
-+
Displaying 1 - 40 of 40 Results
