Structural Rivets

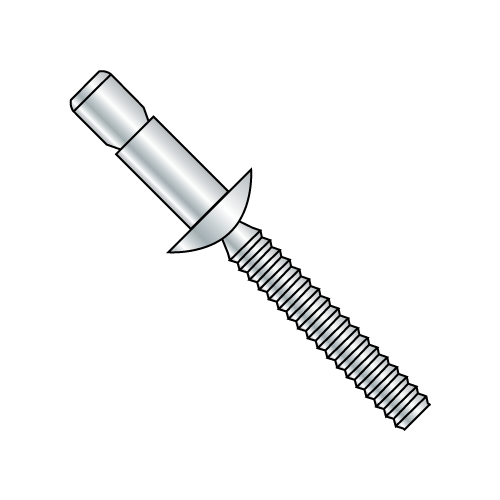

A two-piece blind fastener consisting of (1) a mandrel with flared, hollowed-out head and a serrated stem; and (2) a self contained tubular body with a head which has a dome shape.

This structural rivet has greater tensile strength and shear strength than a standard break-stem blind rivet. The way the mandrel expands radially when pulling through the rivet body enables it to completely fill holes that are out-of-round. Can be used to join two metals or a metal and a plastic. Structural rivets are used in automotive manufacturing, home appliances, cabinetry and HVAC applications. Unlike Monobolts (R), generic structural rivets do not require a special nose piece to be used when seating the rivets.

Select Material

Aluminum
Structural Rivets - Aluminum
Stainless
Structural Rivets - Protruding Head - 300-series Stainless
Steel
Structural Rivets - Protruding Head - Steel
Displaying 1 - 10 of 10 Results
3/16X.062-.270 Protruding Head Structural Rivet Aluminum Sleeve Clear Chromate
Product SKU:
Box Count:
Price Per Box:
PA64
4,000
$1,485.62
-+
3/16X.214-.437 Protruding Head Structural Rivet Aluminum Sleeve Clear Chromate
Product SKU:
Box Count:
Price Per Box:
PA67
3,500
$1,167.57
-+
1/4X.350-.625 Protruding Head Structural Rivet Aluminum Sleeve Clear Chromate
Product SKU:
Box Count:
Price Per Box:
PA810
1,800
$919.19
-+
1/4X.080-.375 Protruding Head Structural Rivet Aluminum Sleeve Clear Chromate
Product SKU:
Box Count:
Price Per Box:
PA86
2,000
$898.97
-+
3/16X.062-.437 Protruding Hd Struct Rivet Steel Sleeve Zinc Clear
Product SKU:
Box Count:
Price Per Box:
PS67M
3,000
$1,325.58
-+
1/4X.350-.625 Protruding Hd Struct Rivet Steel Sleeve Zinc Clear
Product SKU:
Box Count:
Price Per Box:
PS810
1,800
$1,019.24
-+
1/4X.080-.625 Protruding Hd Struct Rivet Steel Sleeve Zinc Clear
Product SKU:
Box Count:
Price Per Box:
PS810M
1,600
$872.77
-+
1/4X.080-.375 Protruding Hd Struct Rivet Steel Sleeve Zinc Clear
Product SKU:
Box Count:
Price Per Box:
PS86
2,000
$988.63
-+
1/4X.350-.625 Protruding Head Structural Rivet Stainless Steel
Product SKU:
Box Count:
Price Per Box:
PSS810
250
$353.73
-+
1/4X.080-.375 Protruding Head Structural Rivet Stainless Steel
Product SKU:
Box Count:
Price Per Box:
PSS86
500
$467.70
-+
